TidyTech Smart Automatic Pet Door Size S - Small

Please note these items are ordered from the manufacturer for delivery to you and may take up to 28 days for delivery.

A £25 restock fee is applied upon return of these items

1. Product Overview

The TidyTech Smart Automatic Pet Door (Size S - Small) is a revolutionary doorbell-activated pet door that allows your pet to press a button to automatically open the door.

No flaps to push, no microchips or collars required — your pet simply learns to press the doorbell with their nose, paw, or tongue. The door automatically lifts open, your pet walks through, and the door automatically closes.

The TidyTech features four intelligent smart modes: In Only (pets can enter but not exit), Out Only (pets can exit but not enter), In & Out (full two-way access), and Locked (door fully locked in both directions).

The patented Smart Anti-Pinch Safety System monitors for obstacles in real-time and instantly reverses the door if an obstruction is detected, preventing pinching or injury. The rust-resistant aluminium frame with flexible PVC curtain withstands pressure up to 50kg.

The rechargeable control box provides 6 months of battery life per charge via USB cable. Training most pets takes just 1-2 weeks with consistent positive reinforcement. Suitable for Small cats and dogs up to 5.5kg (12lb), the TidyTech is available in four sizes with prices ranging from £209.99 to £459.99, sold exclusively through Superior Pet Doors.

2. Technical Specification Matrix

Specification	Detail
Product Name and Model	TidyTech Smart Automatic Pet Door Size S - Small
Manufacturer's RRP in £	Approximately £240-280
Colour	White (aluminium frame with PVC door)

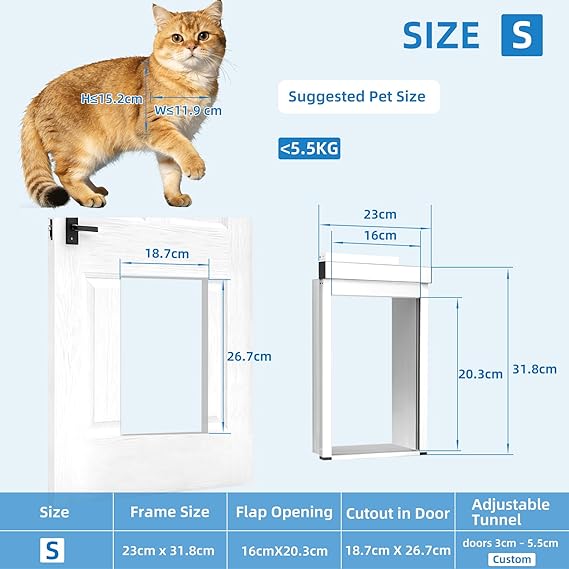

Flap Opening Size	160mm wide by 203mm high
Overall Frame Size	230mm wide by 318mm high
Door Cutout Size	187mm wide by 267mm high
Door Thickness Compatibility	30mm to 55mm (1¼" to 2½") with adjustable telescope tunnel
Compatible Door Types	Wood doors, metal doors (steel/aluminium), PVC/uPVC composite doors
Suitable Pet Size	Small cats and dogs under 5.5kg (12lb). Max pet width: 130mm (opening 160mm minus 30mm)
Power Supply	Rechargeable lithium battery in control box via USB charging cable (included)
Battery Life	Up to 6 months per charge (rechargeable control box)
Doorbell Battery Life	Replaceable batteries in two doorbells (one indoor, one outdoor)
Entry/Exit Control	4-way modes: In Only, Out Only, In & Out, Locked (controlled by buttons on control box)
Operation Method	Doorbell-activated automatic lift. Pet presses button with nose, paw, or tongue. Door automatically lifts, pet walks through, door automatically closes.
Safety Features	Smart Anti-Pinch Safety System with obstacle detection sensors. Door instantly reverses and retracts if obstruction detected mid-close.
Frame Material	Rust-resistant aluminium frame with flexible PVC door curtain (withstands up to 50kg pressure)
Weatherproofing	Yes - flexible PVC door and gaskets provide seal against wind, rain, and cold
Training Required	Yes - pets learn to press doorbell button. Most dogs learn within 1-2 weeks with positive reinforcement training
Installation Time	Approximately 30-60 minutes DIY installation (includes cutting template and hardware)
Warranty	Refer to manufacturer for further information

Specification	Detail
Product Name and Model	TidyTech Smart Automatic Pet Door Size M - Medium
Manufacturer's RRP in £	Approximately £280-300
Colour	White (aluminium frame with PVC door)
Flap Opening Size	203mm wide by 305mm high
Overall Frame Size	264mm wide by 421mm high
Door Cutout Size	221mm wide by 368mm high
Door Thickness Compatibility	30mm to 55mm (1¼" to 2½") with adjustable telescope tunnel
Compatible Door Types	Wood doors, metal doors (steel/aluminium), PVC/uPVC composite doors
Suitable Pet Size	Medium dogs up to 18kg (45lb). Max pet width: 173mm (opening 203mm minus 30mm)
Power Supply	Rechargeable lithium battery in control box via USB charging cable (included)
Battery Life	Up to 6 months per charge (rechargeable control box)
Doorbell Battery Life	Replaceable batteries in two doorbells (one indoor, one outdoor)
Entry/Exit Control	4-way modes: In Only, Out Only, In & Out, Locked (controlled by buttons on control box)
Operation Method	Doorbell-activated automatic lift. Pet presses button with nose, paw, or tongue. Door automatically lifts, pet walks through, door automatically closes.
Safety Features	Smart Anti-Pinch Safety System with obstacle detection sensors. Door instantly reverses and retracts if obstruction detected mid-close.
Frame Material	Rust-resistant aluminium frame with flexible PVC door curtain (withstands up to 50kg pressure)
Weatherproofing	Yes - flexible PVC door and gaskets provide seal against wind, rain, and cold
Training Required	Yes - pets learn to press doorbell button. Most dogs learn within 1-2 weeks with positive reinforcement training
Installation Time	Approximately 30-60 minutes DIY installation (includes cutting template and hardware)
Warranty	Refer to manufacturer for further information

3. Installation Notes

Standard Door Installation (Wood / Metal / PVC)

Suitable for wooden, metal (steel/aluminium), and PVC/uPVC doors. Door thickness must be between 30mm-55mm (1¼" to 2½"). The adjustable telescope tunnel accommodates this thickness range. Installation includes: using included cutting template to mark position, drilling starter holes, cutting out marked section with jigsaw, sliding frame halves into position, adjusting telescope tunnel, securing with hardware, installing doorbells, and testing all 4 modes before pet use.

Wall Installation

The TidyTech can be adapted for wall installation using the telescoping tunnel and frame. Refer to the included installation manual for specific wall fitting guidance. May require professional installation for wall applications.

4. Installation Suitability & Required Accessories

Installation Type	Suitable?	Accessories Required	Notes
Wooden Doors	Yes	None (all included)	Door thickness 30-55mm; installation kit included
Metal Doors (Steel/Aluminium)	Yes	None (all included)	Door thickness 30-55mm; requires jigsaw or metal cutting tool
PVC/uPVC/Composite Doors	Yes	None (all included)	Door thickness 30-55mm; follow installation instructions for composite doors
Glass Doors/Windows	No	Not recommended	TidyTech is not suitable for glass as cutting glass requires professional installation
Walls	Refer to manufacturer	May require additional components	Refer to installation manual for wall fitting guidance
