SureFlap Dual Scan Cat Flap Manual - http://tinyurl.com/4jz3xz4j

This is a Selective Exit Microchip cat flap suitable for Small to Medium cats upto 5kg which uses DualScan Technology.

Benefitting from being a Universal installation cat flap (can be installed into most types of doors, glass, and walls) with the right installation accessories.

The manual locking facilities allow you to close/lock the cat flap when you do not want it used. Works with all common microchips.

Flap Opening Dimensions (size your pet will have to use)

14.2cm wide by 12cm high

Overall size of cat flap

21cm wide by 21cm high

Features

Set exit permissions for each pet to keep specific pets indoors using DualScan technology.
Prevents intruder animals entering your home, including added protection against predators such as foxes (and even raccoons!).
Simple one button programming – it’s easy to change your cats’ permissions at any time.
Low battery indicator light flashes red when the batteries start running low giving you plenty of time to change them.
Stores up to 32 pet identities in memory. Remembers all registered cats even when the batteries have been removed
Safety mode – indoor-only pets can gain entry if they escape through an open door or window
Up to 12 months battery life (4 x AA batteries – not included). A low battery indicator will flash when the batteries need changing.
Manual lock stops your cat leaving or entering the house. Set to in-only to enable your cat to come indoors without being able to get out again.
Works with all common identification microchips & RFID collar tags (not included). View microchip compatibility checker on the manufacturers website for peace of mind.
3-year warranty

Installation into Glass

For installation into Glass, you will need to purchase the corresponding colour Mounting Adaptor. Holes made in glass are circular for strength and therefore a round hole adaptor will be required by your glazier to fit. This cat flap is too deep to be installed into sliding patio doors without inhibiting the ability to open the door fully.

If you have a sliding patio door, please contact us so that we can advise on suitable pet flaps for your needs.

Installation into Walls

For installation through a wall, you will need to purchase the corresponding colour Mounting Adaptor and enough tunnel extenders to span the depth of the wall plus an additional tunnel extender to give a lip for the cat to use as a step into the tunnel.

The tunnels are fixed securely to the mounting adaptor plate internally and externally to provide a safe tunnel for the pet to use whilst also protecting the wall from the weather. It is recommended that a silicone sealant is used to secure the adaptor to the wall to make the weatherproof seal.

Installation into doors

Most doors do not have any metal within them that may affect the mechanism, however, if your door is Composite or Metal lined, you will need to purchase the Mounting Adaptor as this stops the mechanism from being scrambled by the presence of metal within the door.

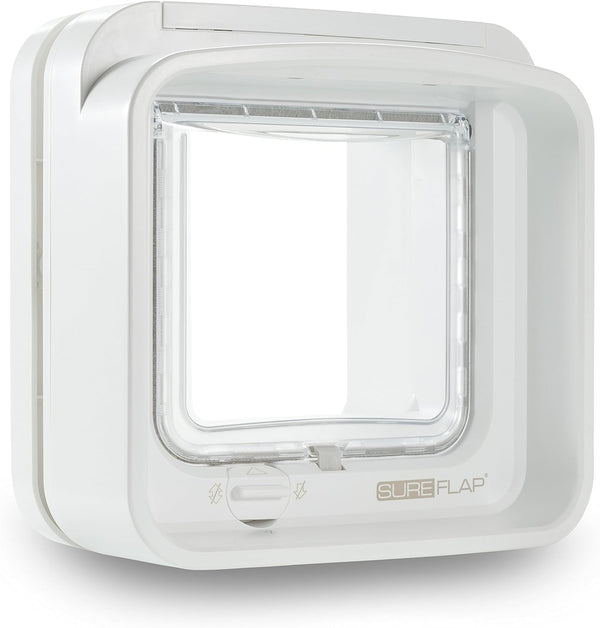

SureFlap Dual Scan Cat Flap DSCF001
