SureFlap Microchip Pet Door Manual - http://tinyurl.com/3h5ks537

This is a standard Microchip pet flap suitable for Medium/Large cats and smaller dogs upto 12.5 kg. If you are not sure if this is going to be large enough for your pet, please check the manufacturer’s website for further information.

Benefitting from being a Universal installation pet flap (can be installed into most types of doors, glass, and walls) with the right installation accessories.

The curfew facilities allow you to set times for when the pet flap closes/locks when you do not want it used. Works with all common microchips.

Flap Opening Dimensions (size your pet will have to use)

17.8cm wide by 17cm high

Overall size of cat flap

26.2cm wide by 28.1cm high

Features

Larger in size than normal cat flaps, the pet door is designed for larger cats and smaller dogs.
Curfew mode – set the door to lock and unlock at specified times. It can be set to lock at the same time each day.
Includes 1 RFID collar tag that can be used if your pet is not microchipped (additional tags sold separately in packs of two).
Stores up to 32 pet identities in memory. Remembers all registered pets even when the batteries have been removed.
Selective entry – any animal can exit. The microchip reader is located on the exterior of the pet door only.
Up to 12 months battery life (4 x C cell batteries – not included). A low battery indicator will flash when the batteries need changing.
Manual lock stops your pet leaving or entering the house. Set to in-only to enable your pet to come indoors without being able to get out again.
Works with all common identification microchips & RFID collar tags (one included). View the microchip compatibility checker on the manufacturers' website for peace of mind.
3-year warranty

Installation into Glass

For installation into Glass, you will need to purchase the corresponding colour Mounting Adaptor. Holes made in glass are circular for strength and therefore a round hole adaptor will be required by your glazier to fit. This pet flap is too deep to be installed into sliding patio doors without inhibiting the ability to open the door fully.

If you have a sliding patio door, please contact us so that we can advise on suitable pet flaps for your needs.

Installation into Walls

For installation through a wall, you will need to purchase the corresponding colour Mounting Adaptor and enough tunnel extenders to span the depth of the wall plus an additional tunnel extender to give a lip for the pet to use as a step into the tunnel.

The tunnels are fixed securely to the mounting adaptor plate internally and externally to provide a safe tunnel for the pet to use whilst also protecting the wall from the weather. It is recommended that a silicone sealant is used to secure the adaptor to the wall to make the weatherproof seal.

Installation into doors

Most doors do not have any metal within them that may affect the mechanism, however, if your door is Composite or Metal lined, you will need to purchase the Mounting Adaptor as this stops the mechanism from being scrambled by the presence of metal within the door.

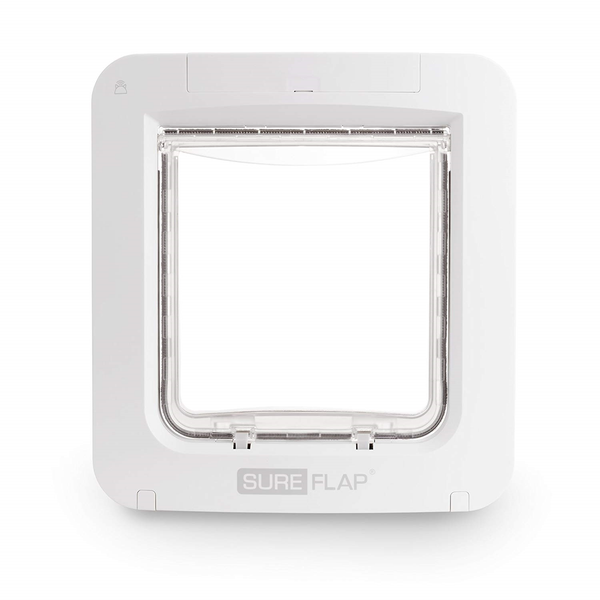

SureFlap Microchip Pet Door SUR101
