Product Description

Black Frame with a Grey flap for installations in uPVC, Wooden and Composite doors. Suitable for doors with depths 44mm to 60mm.

Large size has a flap opening of 280mm wide by 430mm high and is suitable for Larger Breeds of Dogs.

Description

RANGER pet flaps by Freedom Pet Pass have a thick, insulated flap to reduce conductive heat loss, which is heat loss through material. Made for cold weather, the flap components will stay flexible and functional to -40 and below.

Key Features

DoubleMag™ Technology for an airtight seal that keeps extreme weather outside
Thick, insulated flap that stays warm and flexible to -40°C and below
Cellular PVC frame provides 3,000X more R-factor than aluminium frames
Locking panel can be used to keep your pets inside or to secure the door
Independent lab tests show that our door performs as we say it does

Sizing Chart

Recommendations

Too Big is better than Too Small - if a dog has to squeeze through an opening, it can put dangerous strain on his or her back and legs
Size for the tallest/largest pet - make a cardboard cut out for the largest pet door needed and consider using a step to allow smaller pets to use the flap (see the handy Pet Step Accessory which attaches to the door mount so you (humans) don't have issues with access
Mount the pet flap up from the floor - to save the integrity of your door and allow your pet to use the pet door more naturally, the pet flap should be installed at a height that allows the pet to step through the flap. Remember that they will naturally duck their head to go through.

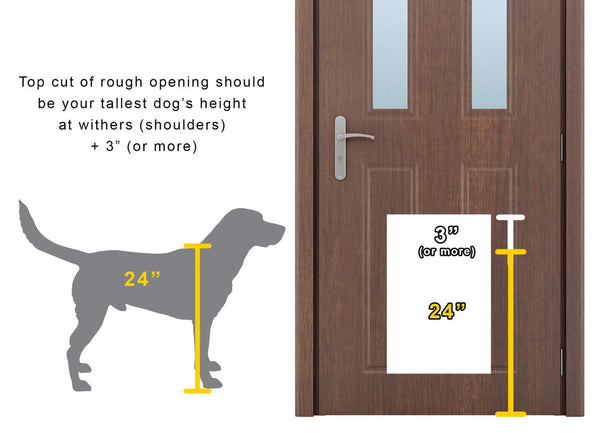

Install at least 5cm higher than the withers (front shoulders) - so that there is enough space for the tallest pet to use easily and it will not put stress on their back or knees.

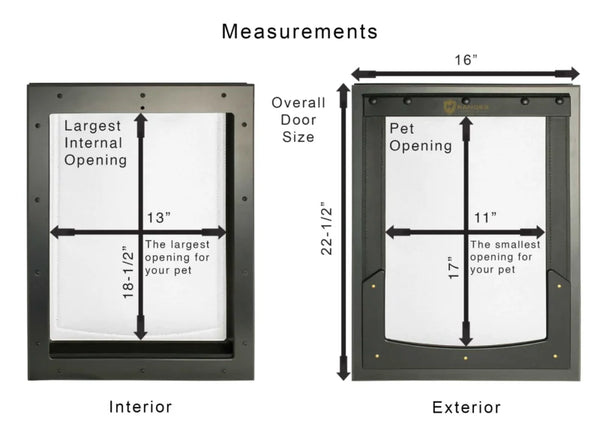

Pet Door Dimensions

Pet Opening (AKA Flap Opening) - The smallest opening through which your pet will pass through when using the pet flap. This are the dimensions used when properly sizing your pets for the correct sized pet flap

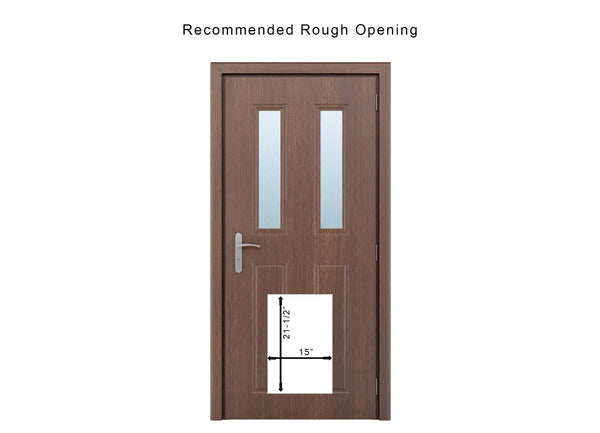

Rough Opening - This is the hole size that you will need to make in your door to install the RANGER pet flap
Frame Size - This is the overall height and width of the pet flap.

Engineered from the Best Materials

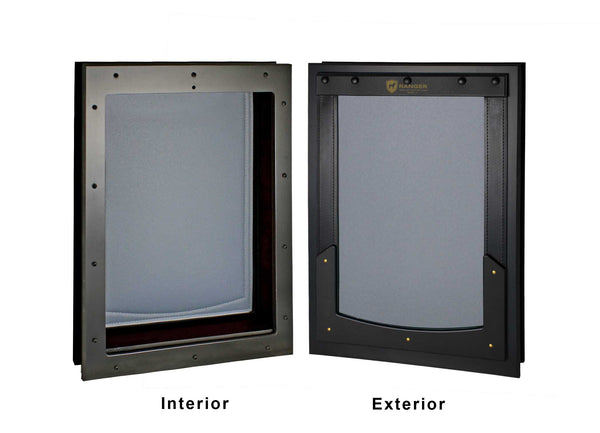

Cellular PVC Frame

Strong, weatherproof, and mold-resistant, and 3,000X more insulating than metal frames used on lower-end dog doors.

Rugged Flap System

The insulated flap system is made from premium materials for maximum energy-efficiency, pet safety, and durability. The flap has an insulating SBR rubber core, protected with marine-grade canvas on each side. The flap seal is made from thermoplastic polyolefin, a material also used for industrial roofing.

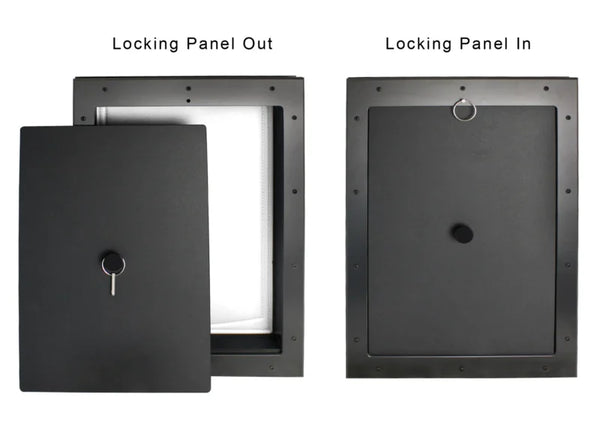

Locking Security Panel

All door-mounted RANGER dog doors include a locking security panel. The “up-and-in” insertion of the panel means no additional clearance is needed around the pet door.

Please note that these pet flaps are ordered from the manufacturer in the US and sent to you directly. Allow up to 14 business days for delivery.

There is a £25 international restocking fee if you return this item

RANGER Pet Door for Doors Black Frame Grey Flap Large DM-L-BLKGRY
