High Tech Pet Power Pet Roll-Up Medium Door (PXR-M)

Technical Specification Matrix & Independent Review

Online product guide https://heyzine.com/flip-book/2e77e5583d.html

Manual https://www.hitecpet.com/cdn/shop/files/Power_Pet_Roll_up_Door_Instruction_Manul5.6.26.pdf?v=5007616543066814717

Please note these pet flaps are ordered from the manufacturer for delivery to you and may take up to 28 days for delivery.

Product Overview

The High Tech Pet Power Pet Roll-Up Medium Door (PXR-M) is the world's most advanced fully automatic electronic pet door, featuring revolutionary Wi-Fi enabled technology and a patented motorized roll-up design.

Unlike traditional flap-style pet doors that require pets to push through, the Power Pet Roll-Up opens automatically in approximately 1 second when your pet approaches wearing the included ultrasonic collar, then closes and mechanically locks when your pet passes through.

The door's unique roll-up mechanism coils the tough polycarbonate panel into a compact compartment above the opening—similar to a garage door—making it ideal for installations with limited vertical space such as under windowsills or door windows.

Suitable for dogs up to 13.5kg (30lbs), this mains-powered door (with optional battery backup) offers 100% airtight and draught-free sealing, whisper-quiet operation (under 40 decibels), and comprehensive app control for managing access modes, setting curfews, and tracking your pet's usage history. The hermetically sealed panel provides the insulation of a dual-pane window and the security of an automatic deadbolt locking system, preventing intruders and stray animals from entering your home.

Technical Specification Matrix

Specification	Detail
Product Name and Model Number	High Tech Pet Power Pet Roll-Up Medium Door (PXR-M)
Manufacturer's RRP	US $800.00 RRP plus international shipping (roughly 20% of rrp price)
Colour Options	White
Flap Opening Size	197mm wide by 394mm high
Overall External Frame Size	273mm wide by 610mm high
Cut-out Size for Doors/Walls	241mm wide by 572mm high
Tunnel Depth (included wall tunnel)	Refer to manufacturer for further information
Suitable Pet Size	Dogs up to 13.5kg (30lbs). Max pet width: 167mm (opening width 197mm minus 30mm)
Power Supply	AC mains powered via supplied wall outlet adapter; optional rechargeable 12V battery backup available (sold separately, Part B-12V)
Battery Life (optional battery backup)	Refer to manufacturer for further information
Collar System	Ultrasonic collar-activated system. Included: one waterproof MS-5 ultrasonic collar key fob measuring 51mm wide by 25mm high by 10mm deep. Optional: RX-10 rechargeable collar available separately.
Maximum Collar Capacity	Unlimited (system recognises any pet wearing an MS-5 Collar)
Locking Modes	App-controlled locking modes (in only, out only, both ways, locked) with manual lockout panel for added security when away
Entry/Exit Control	Fully automatic collar-activated entry and exit. Dual independent sensors on inside and outside allow separate range adjustment for entry and exit.
Curfew Mode / Timer Function	Yes – Wi-Fi app-controlled curfew mode allows unlimited inside and outside access timers. Set specific times for the door to lock automatically.
Smart Features	Wi-Fi app control, remote locking/unlocking, curfew scheduling with unlimited timers, pet usage history tracking, directional sensing technology (distinguishes between pet approaching vs. wandering by), dual-range sensitivity control (independent inside and outside activation distance adjustment)
Opening Speed	Approximately 1 second
Noise Level	Under 40 decibels (whisper-quiet operation)
Safety Features	Patented Auto Safety Retract system automatically raises the panel if it encounters an obstacle when closing, preventing pet injury
Security Features	Automatic deadbolt locking system when closed, tough polycarbonate panel (nearly indestructible), high-security lockout panel included
Insulation and Sealing	Hermetically sealed panel, 100% airtight and windproof (even in hurricane force winds), provides insulation equivalent to dual-pane window
Warranty Period	Refer to manufacturer for further information

Installation Notes

Standard Door Installation (Wood / uPVC)

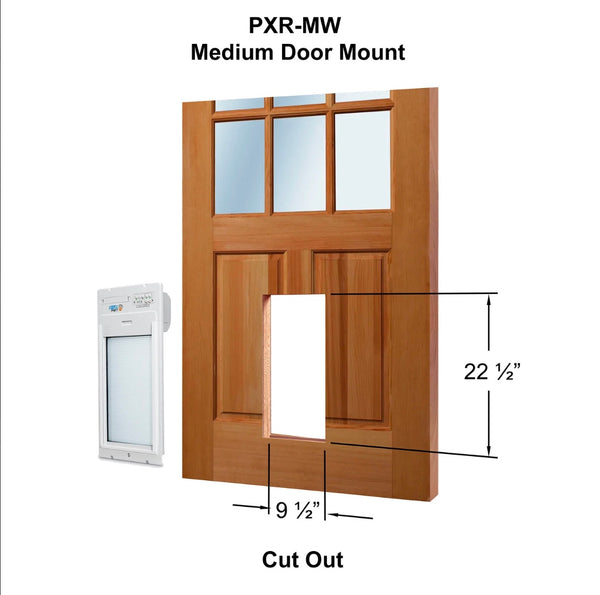

Suitable for installation into wooden and uPVC doors. A rectangular hole measuring 241mm wide by 572mm high is required.

Important: Check there is enough height in doors to allow installation, as the Large size requires significant vertical clearance.

The Power Pet Roll-Up door requires no special installation procedures and installs in much the same way as a conventional flap door. The door requires a mains power source via the supplied wall outlet adapter. An included heavy-gauge aluminium wall tunnel with tough powder coat finish and stainless steel hardware makes installation straightforward and provides a professional appearance. The unique roll-up mechanism fits in areas with limited vertical space, easily fitting under windowsills and door windows where traditional electronic doors cannot.

Glass Installation

The Power Pet Roll-Up Large Door is not suitable for standard glass installation. For glass installations, refer to the manufacturer for alternative models or glass mounting adaptor availability.

Wall Installation

Wall installation is suitable and is one of the primary installation types for this product. A rectangular hole measuring 241mm wide by 572mm high is required. The included heavy-gauge aluminium wall tunnel provides a weather-tight path through your home's exterior, protecting drywall and insulation from the elements.

For thicker walls, additional Medium Tunnels (Part AW-PXR-M3, sold in packs of 3) may be required; consult the manufacturer for specific wall thickness guidance. The door requires a mains power source via the supplied wall outlet adapter, so proximity to an electrical outlet should be considered during installation planning.

Installation Suitability & Required Accessories

Installation Type	Suitable?	Accessories Required	Notes
Wooden Doors	Yes	Included aluminium wall tunnel and supplied hardware; requires mains power source	Rectangular hole 241mm x 572mm required; check sufficient door height
uPVC Doors (single panel)	Yes	Included aluminium wall tunnel and supplied hardware; requires mains power source	Rectangular hole 241mm x 572mm required; check sufficient door height
Metal / Composite Doors	Yes	Included aluminium wall tunnel and supplied hardware; requires mains power source	Rectangular hole 241mm x 571mm required; check sufficient door height
Glass (Single/Double/Triple)	Refer to manufacturer	Not applicable for standard model	Consult manufacturer for glass mounting options or alternative models
Walls (brick/cavity)	Yes	Included aluminium wall tunnel; additional Medium Tunnels (Part AW-PXR-M3, sold in packs of 3) for thicker walls; requires mains power source	Rectangular hole 241mm x 572mm required; consult manufacturer for wall thickness guidance

Optional Accessories

- Rechargeable 12V Battery Backup (Part B-12V) for uninterrupted operation during power outages or wire-free operation

- Additional MS-5 collars for multi-pet households

- Medium Tunnels (Part AW-PXR-M3, sold in packs of 3) for thicker wall installations

Power Supply and Battery Life

The Power Pet Roll-Up Medium door operates on AC mains power via the supplied wall outlet adapter, eliminating battery life concerns entirely for standard operation.

For users requiring backup power during outages or wire-free operation, an optional rechargeable 12V battery (Part B-12V, sold separately) is available. This is predominently a back up battery designed to take over temporarily when mains power is not available.

The mains-powered operation ensures the door is always ready to operate without the inconvenience of battery replacement.

The included MS-5 ultrasonic collar is waterproof and lightweight, designed to be comfortable on larger dogs.

The mains-powered design is particularly appreciated by users who experienced battery life frustrations with other electronic pet doors.

Ease of Use

Setting up the Power Pet Roll-Up Medium door is straightforward. Physical installation follows conventional pet door procedures, with the included aluminium wall tunnel and supplied hardware simplifying the process.
However, due to the larger size requiring a 241mm x 572mm cutout, installers should ensure there is sufficient vertical clearance in the door before beginning installation.
Once installed and connected to mains power, the Wi-Fi app guides users through the setup process for connecting the door to their home Wi-Fi network and configuring access settings.
The app interface is functional and comprehensive, allowing users to manage locking modes, set curfew timers, adjust sensor activation ranges, and track pet usage history.
The collar-activated system is simple to use: pets wear the lightweight ultrasonic collar, and the door automatically opens when they approach.
Training pets to use the door is typically easier than with traditional flap doors since pets do not need to overcome hesitation about pushing through a flap. However, some pets may initially be startled by the motorized opening and closing, requiring a brief adjustment period.
The directional sensing technology eliminates ghost openings, and the dual-range sensitivity control provides fine-tuned control over activation distances. The high-security lockout panel provides peace of mind when away from home.
Overall, the Power Pet Roll-Up Medium door offers exceptional ease of use for both pets and owners once initial setup is complete.
Fully automatic collar-activated operation eliminates need for pets to push through flap
Medium opening (197mm x 384mm) suitable for dogs up to 13.5kg (30lbs)
Revolutionary roll-up design fits in areas with limited vertical space (under windowsills, door windows)
Whisper-quiet operation (under 40 decibels) and fast opening speed (approximately 1 second)
100% airtight and windproof hermetically sealed panel with insulation equivalent to dual-pane window
Directional sensing technology eliminates ghost openings (only opens when pet approaching, not wandering by)
Dual-range sensitivity control allows independent adjustment of inside and outside activation distances
Wi-Fi app control with unlimited curfew timers, remote locking/unlocking, and pet usage history tracking
Automatic deadbolt locking system and tough polycarbonate panel provide exceptional security
Patented Auto Safety Retract system prevents pet injury if obstacle encountered when closing
Mains-powered operation eliminates battery replacement concerns
Optional rechargeable 12V battery backup available for power outages or wire-free operation
Unlimited collar capacity (system recognises any pet wearing MS-5 or RX-10 collar)
Heavy-gauge aluminium wall tunnel with professional finish and stainless steel hardware
Exceptional build quality and durability with nearly indestructible polycarbonate panel
Easier training for pets compared to traditional flap doors (no pushing required)

Customer Service Contact Information for UK

Note: High Tech Pet Products, Inc. is a US-based manufacturer. UK customers should contact their local retailer for product-specific support. For manufacturer support:

Manufacturer (US): High Tech Pet Products, Inc.

Phone (US): 1.800.255.1279 (toll-free within US)

Email: Info@HighTechPet.com

Opening Hours (US Pacific Time): Monday to Friday: 6:30 AM to 4:00 PM (Holidays excluded)

Online Support: https://www.hitecpet.com/pages/customercare or https://www.hitecpet.com/contact-us.html

What to Have Ready When Contacting Customer Service:

- Product model number (PXR-M)

- Serial number (if available, found on the product or packaging)

- Purchase date and retailer

- Description of the issue or query

- Installation type and material (e.g., wooden door, wall) and photos if helpful

- Power source (mains AC or battery backup) if issue relates to power

Manufacturer Website URL for Flap

https://www.hitecpet.com/collections/power-pet-roll-up-wifi-pet-door

High Tech Pet Roll Up Medium Size PXR-M
