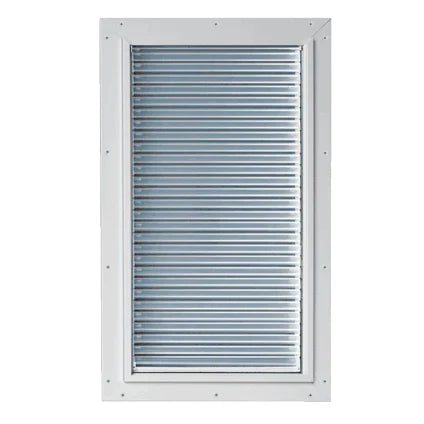

High Tech Pet Armor Flex Pet Door Small with wall mount AF2-SW (requires additional tunnels for wall installations)

Description

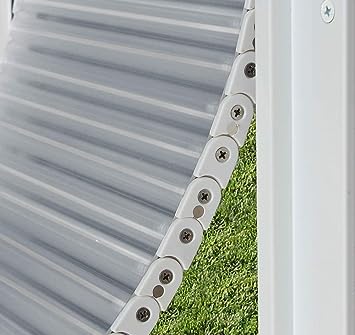

High Tech Pet brings you the latest innovation in pet doors. Our new, Armor Flex premium aluminum pet doors are the best sealed, most secure, most energy efficient and best built pet doors on the planet. These superior pet doors feature our new, patent pending, flap design made of interlocking segments that provide horizontal rigidity to fully compress seals on the sides of the flap, while providing vertical flexibility so your pet can easily and safely pass through the opening. There is no other pet door like it on Earth. The frame features industrial grade, heavy gauge aluminum construction. The flap is constructed from a super high strength ABS composite. Air tight sealing is accomplished by a matrix of rare earth magnets to individually align each flap segment to compress the seals. This unique magnetic, segmented flap design will withstand storm force winds while easily allowing a pet to push it open. Armor Flex doors are finished with an extremely tough power coating to resist scratches, wear and tear and will remain beautiful for years and years. These doors are truly built to last a lifetime.

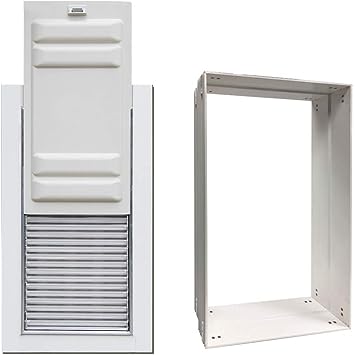

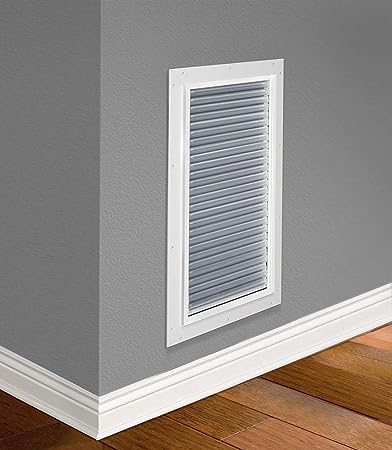

Standard Mount models may be mounted in door or wall but require framing for wall mounting. Our aluminum wall mount kits provide a pre-built aluminum frame for wall mounting.

Key Features

The Best Air tight seal
The Strongest Aluminium Construction
The Most Energy Efficient
Built to last a lifetime

Sizes listed are in inches

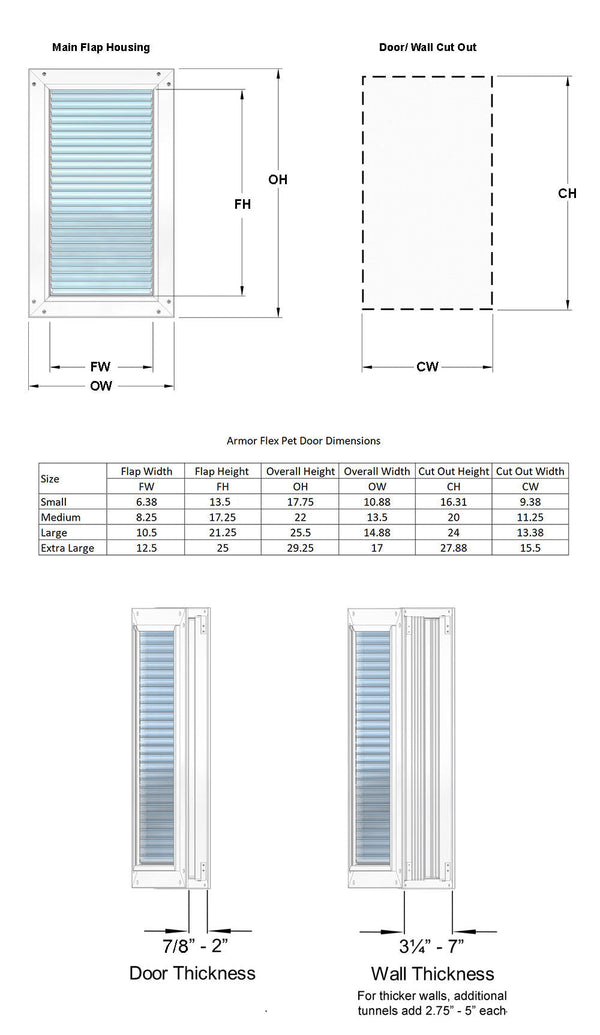

Size	Flap Dimensions	Rough Cutout Dimensions	Outside Frame Dimensions	Recommended Pet Height
Small	6.38" x 13.5"	9.38" x 16.31"	10.88" x 17.75"	12" - 19"
Medium	8.25" x 17.25"	11.25" x 20"	13.5" x 22"	12" - 25"
Large	10.5" x 21.25"	13.38" x 24"	14.88" x 25.5"	12" - 31"
Extra-Large	12.5" x 25"	15.5" x 27.88"	17" x 29.25"	12" - 38"

Small 6.38"w x 13.5"h
Medium 8.25"w x 17.25"h
Large 10.5"w x 21.25"h
Extra Large 12.5"w x 25"h

Flap Dimensions:

6.38"w x 13.5"h

The entry way your dog goes through.

Outside Frame Dimensions

10.88"w x 17.75"h

The outer edge of the pet door.

Rough Cut Out:

9.38"w x 16.31"h

The size of the hole needed to fit your pet door into your door.

High Tech Pet Armor Flex with Wall Mount Pet Door Small AF2-SW
