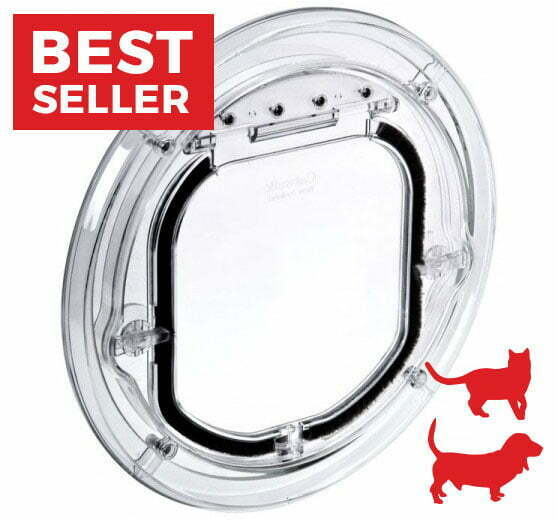

Pet-Tek Clear Maxi Dual Glaze Glass Fitting Cat Flap G-SDDC

Pet-Tek Brochure download http://tinyurl.com/6jnydpcp

Pet-Tek installation instructions http://tinyurl.com/y6vu5785

Description

The Catwalk® Glass Fitting Maxi Dual Glaze pet door is designed for glass panels from (3mm – 28mm) in thickness, and makes it suitable for single and double glazing applications.

Flap size: 195mm x 185mm
Overall size: 304mm diameter
Application: Glass fitting (3mm – 28mm)
Pet size: Large cats and small dogs (see breeds below)
Cut out size: 267mm diameter
For sliding doors: The G-SDDC protrudes 17mm on the inside and 11mm on the outside of the door its connected to. Please ensure enough clearance for sliding doors to pass the pet door.

Please note: the pet door cannot be installed into an existing tempered glass or double glazed window. The glass panel would need to be replaced with the hole already cut at time of manufacture for the pet door to be installed.

Please note the sizes below are recommendations only, and we always recommend to measure your pet first and contact us if you are unsure.

Large cats: Maine Coon, Savannah, Ragdoll, Chausie, Ragamuffin, Siberian Cat, British Shorthair, Highlander, Turkish Van, British Longhair

Small dogs: Yorkshire Terrier, Shih Tzu, Chihuahua, Pug, Pomeranian, Miniature Pinscher, Cavalier King Charles Spaniel, Papillion, Maltese, Bichon Frise, Beagle

Four way locking system
Generous flap size (195mm x 185mm)
Supplied with full weather seal on flap
Automatic magnetic flap positioning
Moulded feather edge seal to minimise the effects of weather
External self draining outlet
Easy installation, using 4x screws
Self lining
Smooth quiet action
All stainless steel screws
Seals against flat glass panels
Self draining condensate outlet
No external screws for security
Fits glass panels (3mm – 27mm) in thickness
Environmentally friendly – (may be recycled)
Manufactured entirely from high quality, high impact, virtually indestructible (PC) polycarbonate
No cavity feature, prevents dirt getting trapped in glass windows

All glass fitting pet doors, should be installed by a professional glazier

Manufactured from ABS and virtually indestructible (PC) Polycarbonate

All Catwalk® and Dogwalk® products come with a 3 year Manufacturers warranty
